Data logging with AntiLog is simpler, more reliable, and
cheaper than using a PC or PDA! There is no software to install, no Windows
operating system to 'blink' when it should be capturing your data, it doesn't
cost as much as a laptop, and because it uses so little current, a lithium PP3
battery will run it for about a week! Data can even be played back in 'real
time' to simulate real equipment output.

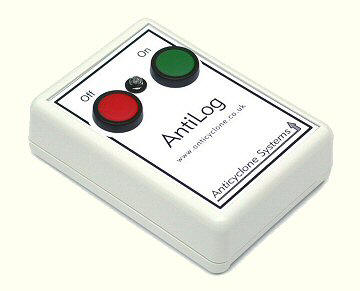

The ideal way to record all your RS232 data without requiring
a PC, laptop or hand held computer. This simple to use, high performance unit
simply plugs into your RS232 data source and you can log data as soon as you
press the 'On' button! Push the 'Off' button to stop logging. Repeat as many
times as you like to append data to the store - it's as simple as that. Holding
the 'On' button down for a second or more puts the unit in playback mode which
allows the recorded data to be replayed or uploaded to a PC, PDA, Laptop or
other host machine of your choice.
Once configured for a particular application, AntiLog is
completely self contained - simply press the 'ON' button to start recording, and
the 'OFF' button to stop recording, To start recording again just press the 'ON'
button. Holding the ON button for more than a second puts the unit into playback
mode to allow the recorded data to be read back into a PC or other host - it's
as easy as that! Data is never over-written in the record mode.
All AntiLog units are available with seven different memory
capacities: 32Mb, 64Mb, 128Mb, 256Mb, 512Mb, 1Gb & 2Gb.
|
