Refrigeration Equipment Spare Parts
Unit Bearing Condenser Fan Motorby EMS Motors Inc. USA

Quality fan motors, agitator motors, and accessories to original equipment manufacturers for the commercial refrigeration industry.
These motors are suitable for a wide range of fan applications where quiet operation and long life are a priority.

  • Durable and most economical
  • Ideal for many applications where long life and dependability are required.
  • Totally enclosed motors are built for demanding applications where continuous duty or condenser heat are factors.
  • Versatility in mounting - top, bottom and back of the casting
  • Horizontal or shaft up operation
  • Some models are available for shaft down applications
Products Description Photo

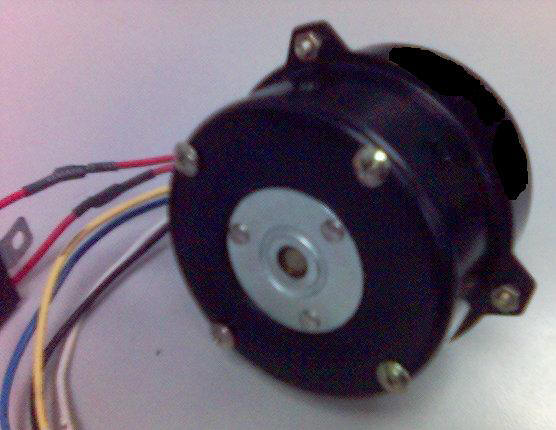

ST-SPFBE92 3 ½ Inch Unit Bearing Motors
Cast Iron Casing for Durability
9 Watt, 50/60Hz, 220V,1550rpm CW
Application - use in most type of display coolers/freezers


ST-SPFBE62R 3 ½ Inch Unit Bearing Motors
Cast Iron Casing for Durability
5watt, 50/60Hz, 220V,1550rpm
Reverse Direction - CCW
Application - use in single / twin and triple bowl Drink Dispenser and Jet-spray


Dual Voltage Condenser Fan Motor

Products Description Photo
CFM - 110 42W 4P Thermally protected
Volts: 110 V 50/60Hz
1380/1640rpm Current 0.45A

Available in both CW or CCW direction

CFM – 220 42W 4P Thermally protected
Volts: 200~240 V 50/60Hz
1350/1580rpm Current 0.2A

Available in both CW or CCW direction


CFM -  110-220 42W 4P Thermally protected
Volts: 110/220V 50/60Hz
1389/1634rpm Current 0.23A

Available in both CW or CCW direction


Application
  • For use in Vending Machines, Refrigerator condensing units
  • Suitable for vertical mounting
