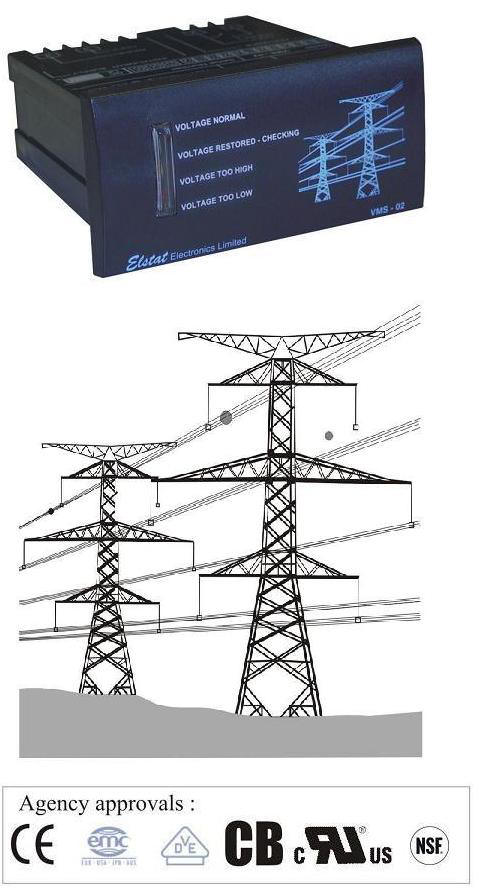

The VMS range is especially designed for
countries with large voltage fluctuations, which are very often
experienced in for example, the rural areas, areas where a large user is
located, or due to lack of sub-stations.
The VMS (Voltage Management System) will ensure that the supply to the
electrical appliance will be switched off when the voltage is outside
its accepted tolerance and switched on again as soon as the voltage is
within an acceptable non-damaging range.
The VMS range is suitable for most appliances with the exception of
computer systems where specialised equipment should be used to avoid
corruption of software programs etc.
|
Model identification |
VMS-01 & VMS-02 |
|
Voltage |
220 Volt - 50Hz |
|
Response time |
>1 second/<3 seconds |
|
Max switch capacity |
16 Amp AC1
6 Amp AC3 |
|
Reset timer |
VMS-01 = 2 sec
VMS-02 = 164 sec |
|
Operating temp. range |
0- 560 Deg C |
|
Cut off low |
187 Volt (-15%) |
|
Cut in from low |
198 Volt (+10%) |
|
Cut off high |
253 Volt (+15%) |
|
Cut in from high |
242 Volt (+10%) |

Available in 110V 60Hz
Contact us for more details

|
